24 inch Industrial Touch Screen Monitor 1500nits High Brightness with Amphenol Ports and Waterproof Performance
Features
1. Narrow bezel design, aluminum alloy frame sandblasting and oxidation process, anti-UV and anti-discoloration treatment, front shell IP65 waterproof
2. Industrial-grade LCD screen, full viewing angle, 1500 brightness visible under sunlight, OSD button to adjust brightness
3.10-point capacitive touch screen, the protective layer is 2mm tempered glass (chemically strengthened), the hardness reaches 7H, and the surface is treated with AG anti-glare treatment
4. Play the customer-specified LOGO when turning on the computer
5. Rear aviation power test backup interface, supports 9-36VDC input
6. The monitor is built with industrial-grade components, 7x24 continuous operation, wide temperature operation -20 °C ~ 70°C (-4°F ~158°F)
Specification
LCD panel
| Panel size | 24" |
| Display active area | 531.36(W)x298.89(H) mm / 20.92x11.767 in |
| Resolution | 1920*1080 |
| Aspect ratio | 16:9 |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 1500 nits, sunlight readable |
| Contrast ratio | 5000:1 |
| View angle | 89°/89°/89°/89° (R/L/U/D) |
| Support Color | 16.7M |
| Backlight | WLED, 50K hours |
| Touch panel | |
| Touchscreen Type | Projected Capacitive Touch (up to 10 points ) |
| Surface Hardness | 7H |
| Surface treatment | Anti glare (chemical etching) |
| Luminousness | ≥85% |
| Touch controller IC | EETI 80 |
| Available touch drivers | Windows, Linux, Android, Mac, etc |
| Touch bonding | Air Bonding |
| Touch options | (5 wires restive touch, IR touch optional) |
I/O Ports
| Video input | 1x DP, 1x VGA, 1x DVI, 1x HDMI |
| Audio in/out | 1x 3.5mm Line-out, 1×3.5mm Line-in(2 x 2W Speakers) |
| Touch | 1x USB |
| Power connector | 1x 12V DC jack, 1x 3-pins terminal block connector (9-36V), 1*4PIN aviation power interface 9-36VDC |
| Working voltage | DC 9~36V |
| Power consumption | 55W |
| Power adapter | AC 100 ~ 240V input and DC +12V@5A MAX output, 60W |
Enclosure
| Material | Aluminium alloy bezel+ Zinc Plating cold rolled steel rear housing |
| Finish | Front bezel: Sandblasting+Hard Anodizing, UV-protection and Anti-discoloration treatment Rear housing: powder coated |
| Color | Black+Silver |
| Mounting | VESA mount 75*75mm, Panel mount |
| IP rating | Front panel IP65 |
| Cooling system | Passive - Fanless |
Operating Environment
| Temperature Range | Operating: -20 °C ~ 70°C (-4°F ~158°F) Storage: -30 °C~80°C (-22°F ~176°F) |
| Relative humidity | Up to 90% at all relevant temperatures, non-condensing |
| Vibration | GB/T 2423.10-2019 |
| Shock | GB2423.5 |
| EMC | Class B |
Other
| Weight | Net weight 7.9kg Gross weight 10kg |
| Product Dimension | 576.9*345.9*54mm |
| Packing info | 1pcs/ctn 71*18*52cm/10kg 2pcs/ctn 71*34*52cm/20kg |
| Accessories | Power adapter, power cord, USB touch cable, HDMI/ VGA cable, embedded mounting screws, wall mounting brackets |
| Warranty | 1 year warranty |
| Certificates | CE, FCC, RoHS |

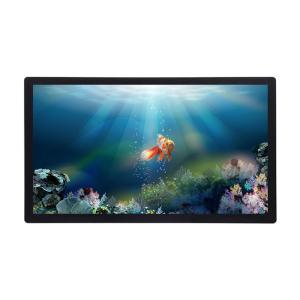

Product picture
Applications
Restaurant
Self-service kiosk
Gas station
Payment terminal machine
Vehicle
Bus stop
